Clamp slides or push-pull devices in combination with KOOI® roller forks so that the load can be set down very quickly. The distance between the tines can be adjusted hydraulically. With the roller forks, the goods can always be set down on a normal pallet using "slip sheets". For storage in shelves, a flat-bottomed rack is required or the goods would have to be set down on a pallet. In combination with adapted pallets that have an entry opening for the KOOI® roller forks, the load can be removed from this pallet using "slip sheets" and set down for external transport in a container or truck. The special pallet remains for further use within the company.
Since these are products that require a lot of advice and we want to offer you the optimal system for you, we ask you to contact us Contact us.
Push-Pull GEQPDiscover the many benefits, features, technical specifications and choices. |
 |

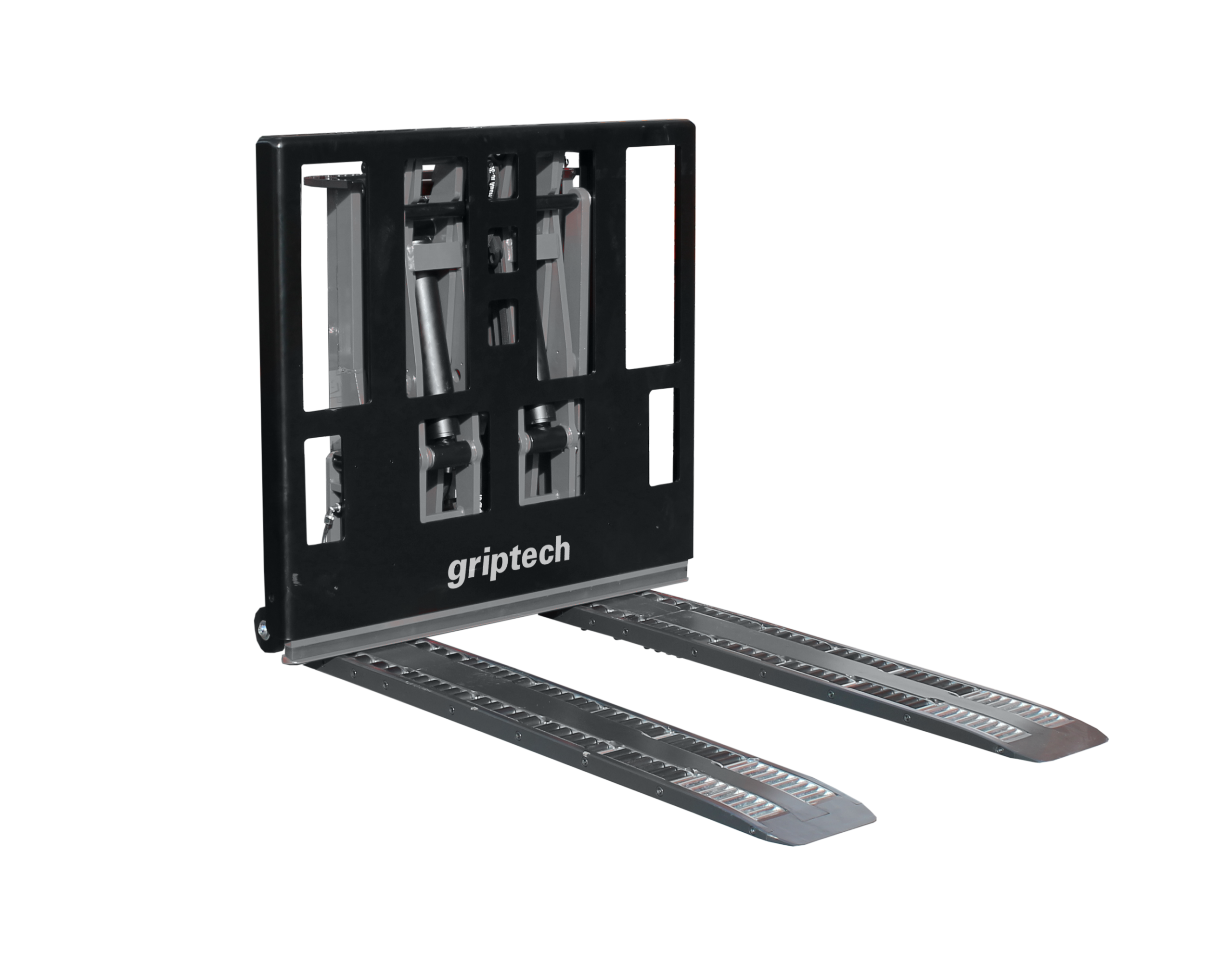

Push-Pull with roller forks |
|||||||||||
|
Model series |
Capacity at 600 mm LSP |
ISO/FEM |
H mm |
A mm |
L mm |
L2 mm |
Cross section DxS mm |
Width F mm |
V mm |
ESP mm |
Weight kg |
|
GEQP20B100C |
2000 |
II |
980 |
580 - 1060 |
1180 |
1270 |
210 - 55 |
1025 |
330 |
250 - 603 |
546 |
